Aeromotive 13109

Features | Options | Images | Installation

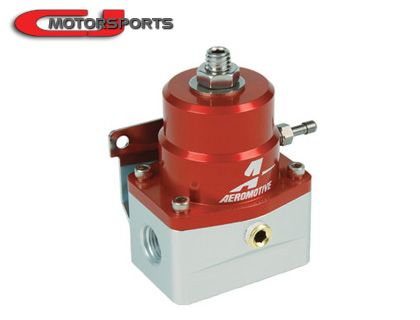

CJ Motorsports has found the Aeromotive 13109 to be reliable, consistent, compact, and economical. This regulator is entirely billet aluminum and available in silver (with a red anodized cap), or all black. It features a pair of -6 inlet ports on the left and right sides. There is a 1/8 NPT gauge/sensor port on the front. The -6 outlet port is located on the bottom. All -6 ports are for use with o-ring port fittings (not included, but optional).

Connecting the vacuum port to the intake manifold will provide a 1:1 "rising rate" fuel pressure. The vacuum port can be left open for a static fuel pressure setting to emulate a returnless fuel system.

(Turbosmart FPR 1200 vs FueLab 51502 vs Aeromotive 13109 Black & Red
& Optional Regulator Fitting Kit, Type 1)

Product Features:
  • Two -6AN inlet ports and one -6AN return port
  • Base pressure adjustable from 40-75 PSI
  • Gasoline and alcohol compatible
  • Versatile mounting bracket and stainless steel hardware
  • 1/8” NPT gauge port with plug for external pressure gauge
  • 1/8” NPT pressure reference port with barbed fitting


Fuel Pressure Gauge:
  • 1/8 NPT, 0-100psi
  • Threads directly into regulator body
-6an Regulator Fitting Kit:
  • Type 1: Dual Inlet, Single Outlet
  • Type 2: Single Inlet, Single Outlet
  • Type 3: Single Inlet, Side Gauge Elbow

Detailed Photos & Information:

(Optional 0-100 PSI Fuel Pressure Gauge)

(Optional -6AN Regulator Fitting Kit, Type 3 & Optional 0-100 PSI Fuel Pressure Gauge;
Shown on Turbosmart FPR 1200)

(Optional -6AN Regulator Fitting Kit, Type 2)
