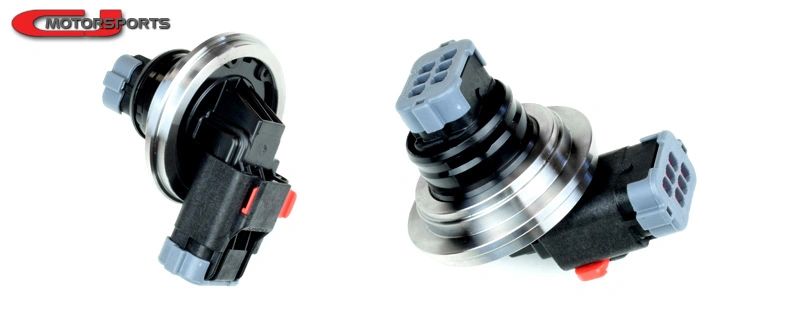

Use OEM quality components to wire your fuel pump or fuel cell project with our Fuel Tank Bulkhead Connector Kit.

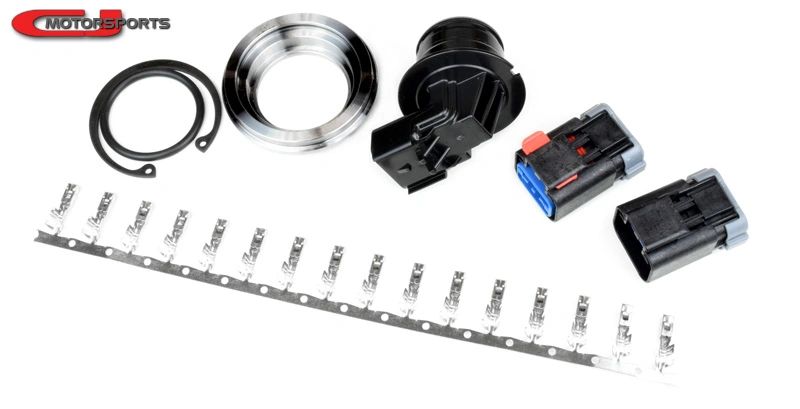

The kit includes a viton o-ring to seal the bulkhead to the bung and a snap-ring to secure the bulkhead. Internal and external connectors are included along with 24 crimp terminals; 16 for larger gauge pump wires, and 8 for smaller sensor wires. With only 6 needed per connector, you will have 12 leftover/spare terminals for rewiring or if you perform a bad crimp.
The connector kit is rated to 40A (per terminal). The larger terminals are intended for use with 14-10AWG wire, and the smaller terminals are intended for use with 18-20AWG wire. A quality barrel crimp tool is highly recommended for crimping the terminals. The terminals are easily installed or de-pinned with ease using basic hand tools. Note: 10 AWG wire, while possible, is difficult to use in this connector. Consider additional spare terminals if you are determined to use 10 AWG.
Max diameter of the bung is 2.4". Minimum panel hole diameter is 1.9".
